首頁 > 產品中心 > 紙杯機
特點：
/LF-110紙杯機4.jpg)
/LF-110紙杯機5.jpg)
使用熱風加熱器系統使底部更加完美并確保精度。
/LF-110紙杯機6.jpg)
/LF-110紙杯機7.jpg)
/LF-110紙杯機8.jpg)
/LF-110紙杯機9.jpg)
/LF-110紙杯機10.jpg)
/LF-110紙杯機11.jpg)
/LF-110紙杯機12.jpg)

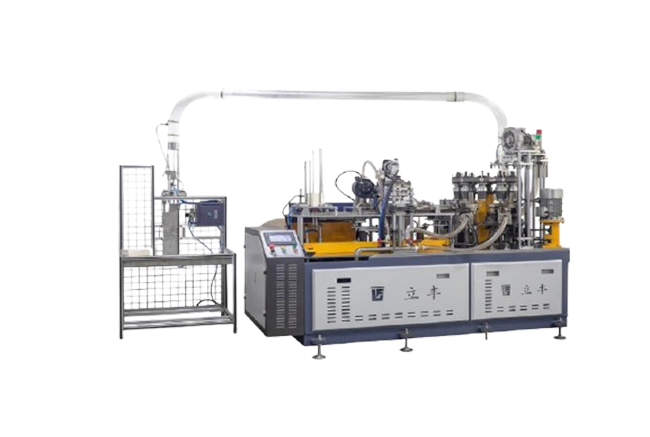

Name 名稱 Middle Speed Paper cup Machine HS Code 8441309000 Model 型號 LF-110 The machine includes: Finished cup Collect System設備包含收杯設備 Paper cup Size尺寸范圍 A=70mm-95mm B=48mm-70mm D=5mm-10mm Raw Material 材料要求 One-side or two-side PE coated paper(Singe PE or Double PE coated paper) Speed速度 100-120pcs/min Speed of 20 hours stable running per day Suitable paper weight材料厚度 190-350gsm Voltage supply電壓支持 380v50hz 3-phase Working Air Source供氣要求 Air pressure 0.5-0.8Mpa, 0.4m3/min General power總功率 16kw Net weight 凈重 2500kgs Measurement (mm)尺寸 2500*1100*1500 Cup Side Sealing 超聲波 EVERGREEN Ultrasonic We can customize machine and mold according to customer’s requirement.
/圖片1.jpg)
單雙淋膜紙
機器可以每天運行20小時
*If user’s voltage supply is different, please inform us in advance.
User should buy Air Compressor客戶需要購買空壓機
部分要求可以根據客戶情況定制
|
電機Motor |
主電機Main motor |
China ZHIBAO |
|
Knurling/ curling motor |
China ZHIBAO |
|
|
配置 |
導軌guide rail |
Taiwan HIWIN |
|
直線光軸Straight line bearing |
JAPAN NSK |
|
|
刀模模具、滾花 |
Cr12MoV Quenching |
|
|
凸輪open cam |
20CrMoTi |
|
|
齒輪 gear |
20CrMoTi |
|
|
軸承bearing |
JAPAN NSK |
|
|
轉盤 Turnplate |
Aluminium alloy 5A02 |
|
|
電器 |
顯示屏TOUCH SCREEN |
臺灣臺達 |
|
可編程控制器PLC |
臺灣臺達 |
|
|
超聲波 ULTRASONIC |
EVERGREEN Ultrasonic |
|
|
熱風器 Hot air heater |
China brand |
|
|
編碼器 encoder |
|
|
|
變頻器Frequency converter |
臺灣臺達 |
|
|
Contactor (switch ) |
|
|
|
Sensor |
日本 PANASONIC(JAPAN) |
